Goede prijs. online

product details

Thuis > Producten >
Hete Bar Solderende Machine
>
±2°C Precision Automatic Soldering Machine with Molybdenum Alloy Thermode
Alle Categorieën

depaneling de routermachine van PCB

V snijd de Machine van PCB Depaneling

De Machine van laserpcb Depaneling

PCB-Ponsenmachine

PCB-Separatormachine

SMT-de Machine van de lijmautomaat

Robotachtige solderende machine

Hete Bar Solderende Machine

Robotachtige Schroevedraaiermachine

PCB-Laderlosinstallatie

PCB-tijdschriftrek

SMT-voederkar
Neem contact met ons op
Ms. Amy
info@smtfullsolution.com
+86-752-6891906
wechat +8613829839112
Contact opnemen

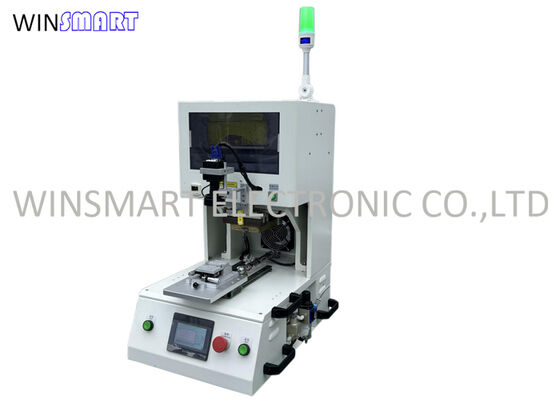

±2°C Precision Automatic Soldering Machine with Molybdenum Alloy Thermode

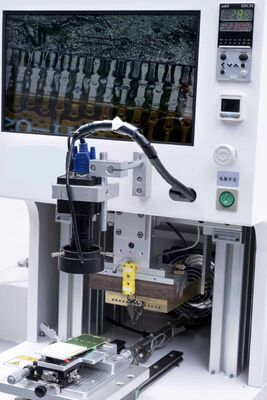

  • Naam
  • Naam

±2°C Precision Automatic Soldering Machine with Molybdenum Alloy Thermode

Merknaam: Winsmart
Modelnummer: SMTS01
Moq: 1 set
Prijs: USD1-10000/Set
Verpakkingsgegevens: multiplex kast
Betalingsvoorwaarden: L/C, T/T, Western Union
Gedetailleerde informatie
Productbeschrijving
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
CE
CE Goedkeuring:
Ja
Armatuur Hoeveelheid:
1
Spanning:
220V/110V
Temperatuurnauwkeurigheid:
±2°C
Thermode-hoeveelheid:
1
Controlesysteem:
PLC
Weergave:
LCD-scherm
Temperatuurbereik:
50-500℃
Type:
Automatisch
Productnaam:
Automatische soldeermachine
Levering vermogen:
200 sets per maand
Productbeschrijving

±2°C Precision Automatic Soldering Machine with Molybdenum Alloy Thermode





Mini Automatic Soldering Machine Introduction:

A Mini Hot Bar Soldering Machine is a compact, high-precision soldering system designed for bonding flexible printed circuits (FPC), flat flexible cables (FFC), or tiny wires to miniature LCD displays (such as those in smartphones, tablets, smartwatches, or handheld devices).
It uses the hot bar soldering technique — applying controlled heat and pressure via a custom-shaped thermode to form reliable electrical and mechanical connections.





Mini Automatic Soldering Machine Features:

1. Use pulse heating technology, the temperature control is accurate, and the temperature sampling frequency is 0.1s

2. Multi stage temperature rise control, ±2℃ soldering precision

3. Real time temperature curve display

4. High precision soldering, ensures consistent solder joints with accurate temperature and positioning.
5. Automatic wire feeding: feeds and positions wires automatically for efficient operation.
6. Programmable operation: offers customizable soldering patterns, timing, and temperature profiles.



Mini Automatic Soldering Machine Specification:

Machine size 500×500×600mm
Working area Max 200*170mm
Machine weight 62Kg
Working air pressure 0.6-0.8Mpa
Fixture quantity 1
Thermode head size Max 40*3mm
Welding precision pitch 0.2mm
Pressing time 1~99.9s
Temperature settings RT~500℃ tolerance ±5℃
Welding pressure 1~20Kg
Temperature settings Two
Working environment 10-60℃,40%-95%
Power supply AC220V±10% 50HZ,2200W
Alignment mode CCD + LCD Monitor
Feeding mode Manual
Starting mode Press start button
Rotation Platform Cylinder control,tolerance<0.02mm
Thermode material Molybdenum alloy
Thermode size Max 60mm long
Origin China
Fixing mode Customized fixture
Application FFC to PCB, FPC to PCB, Wires to PCB
Warranty 12 months





Mini Automatic Soldering Machine Functions:

Soldering FPC/FFC to LCD panels (COF/COG bonding)
ACF (Anisotropic Conductive Film) bonding
Wire-to-PCB or wire-to-LCD module soldering
Thermode heating and cooling cycle control
Force application during bonding process
Precision alignment of LCD and flex circuit



Mini Automatic Soldering Application:

Mobile phone LCD module assembly
Smartwatch or wearable display soldering
Tablet and e-reader display bonding
Automotive cluster and infotainment screen assembly
Medical device displays
Small-scale prototyping and R&D

±2°C Precision Automatic Soldering Machine with Molybdenum Alloy Thermode 0
