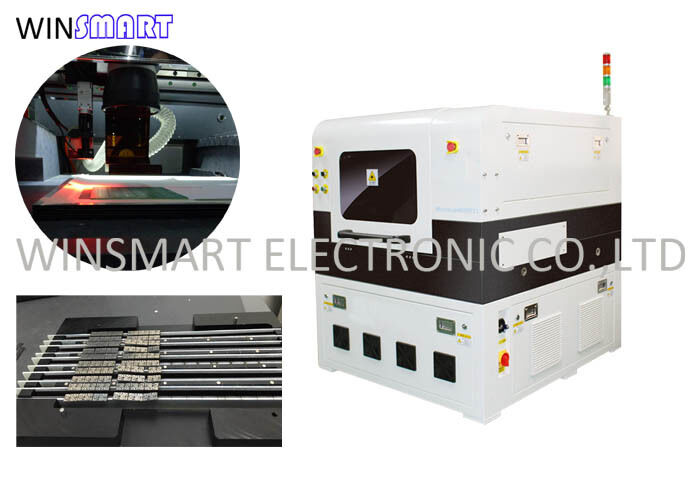

355nm Solid-state Inline Laser Cutting Machine For Customized Working Area

Merknaam:	Winsmart
Modelnummer:	SMTL600
Moq:	1 set
Prijs:	USD1-150K/set
Verpakkingsgegevens:	multiplex kast
Betalingsvoorwaarden:	L/C, T/T, Western Union

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

PCB -materiaal:

FR4, FPC

Cutting Stress:

Werkgebied:

300x400mm

Lasertype:

Garantie:

12 maanden

Naam:

Inline lasersnijmachine

Levering vermogen:

100 sets per maand

Productbeschrijving

355nm Solid-state Inline Laser Cutting Machine For Customized Working Area

Inline PCB Laser Cutting Machine Introduction:

An Inline PCB Laser Cutting Machine is a fully automated, high-precision system designed to cut or depanel printed circuit boards (PCBs) using laser technology. Unlike standalone systems, inline machines are integrated directly into a SMT (Surface Mount Technology) production line, allowing for automated board loading, cutting, and unloading without manual intervention.
This machine is ideal for high-volume, high-mix PCB manufacturing where precision, cleanliness, and speed are critical.

Inline PCB Laser Cutting Machine Specification:

Laser Type	Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength	355nm
Laser Brand	Optowave
Positioning Precision of Worktable of Linear Motor	±2μm
Repetition Precision of Worktable of Linear Motor	±1μm
Scanning Speed	2500mm/s (max)
Working Field	40mmх40mm
Working Table	One
Working Area	300x400mm
PCB Type	V-cut and Tab
PCB Material	FR4, FPC
PCB Thickness	0.2-3mm
CCD Camera	Germany Brand
Table Platform	Marble
Cooling Mode	Water cooler
Exhaust System	Yes
Service	On-site installation and training
Warranty	12 months
Machine Condition	New
Positioning	Fixture

Inline PCB Laser Cutting Machine Functions:

Laser Depaneling / Cutting: Precisely separates multiple PCBs from a large panel using laser energy.

Automated Board Handling: Conveyor-based loading and unloading of PCBs without manual input.

Vision-Based Alignment: Built-in camera system scans fiducials for precise positioning and cutting.

Barcode Scanning / Traceability (optional):Reads product codes for tracking and automatic recipe selection.

Gerber/DXF File Interpretation: Supports programming from standard PCB design files for dynamic cut path generation.

Real-Time Monitoring: Tracks cutting parameters and system status for quality control.

Inline PCB Laser Cutting Machine Advantages:

Fully Automated Workflow: Reduces labor, increases throughput, and supports 24/7 unattended use.

No Dust or Debris: Clean cutting process eliminates need for post-processing.

No Mechanical Stress: Protects fragile components and solder joints from damage.

High Precision: Excellent for complex, tight-tolerance PCB outlines.

High Speed: Capable of cutting multiple boards per minute with consistent quality.

Flexible & Scalable: Easily adapts to different board designs and production volumes.

Low Maintenance: No consumables like blades or routers; lower long-term cost.

Reduced Scrap Rate: Minimizes defects due to its precise, non-contact nature.

Integration Ready: Compatible with MES/ERP systems for smart factory implementation.

Inline PCB Laser Cutting Machine Applications:

Smartphone, smartwatch, and tablet PCBs

Automotive ECU and sensor boards

Medical device electronics

LED lighting modules

Rigid, flexible, and rigid-flex PCBs

High-reliability aerospace and defense electronics
