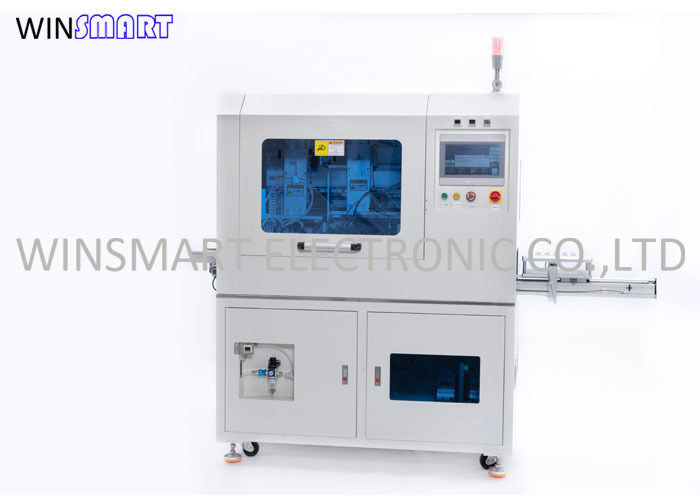

Dual Spindle PCB Depaneling Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply

Merknaam:	Winsmart
Modelnummer:	SMTIR500
Moq:	1 set
Prijs:	USD40000-80000
Verpakkingsgegevens:	multiplex kast
Betalingsvoorwaarden:	T/T,L/C,Western Union

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

PCB-voeding:

Automatische breedte aanpassing

PCB-het Leegmaken:

Vlakke ESD-banden

Spilsnelheid:

100,000 RPM

Armatuur Hoeveelheid:

Werktafel:

ashoeveelheid:

Werkgebied:

300x300mm, kan worden aangepast

Snijdende precisie:

± 0,05 mm

Routing Bit Dia:

0,8-3,0 mm

Naam:

Dual Spindel PCB Depaneling Router Machine

Levering vermogen:

100 sets/maand

Markeren:

300x300mm PCB Depaneling Router Machine

0.8-3.0mm Routing Bit PCB Separator Machine

AC 380V PCB Depanelization Equipment

Productbeschrijving

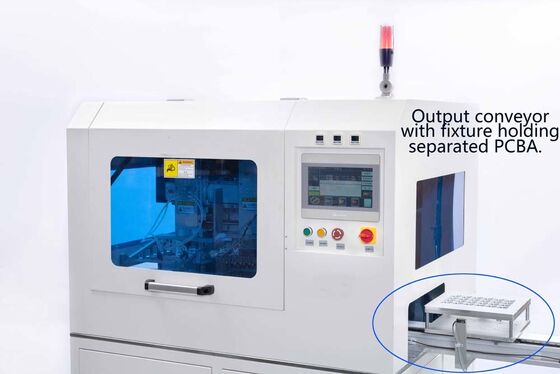

Dual Spindle PCB Depaneling Router Machine with Dual Table Design

This high-precision, automated solution is designed for separating individual PCBs from panels. Featuring dual spindles and working tables, it significantly boosts productivity in high-volume electronics manufacturing. Supports MES integration and barcode scanning for seamless traceability and real-time production monitoring.

Key Features

Dual Spindle Design: Two high-speed spindles operate simultaneously for parallel cutting or alternate operation
Dual Working Tables: Enables continuous operation with simultaneous loading/unloading
High-Speed Routing: Precision routers up to 60,000 RPM for clean, burr-free cuts
Vacuum Dust Collection: Integrated system ensures clean operation and component protection
Precision Vision System: CCD cameras for accurate PCB alignment and cutting path correction
Automatic Tool Change (optional): Increases automation by replacing worn tools without manual intervention

Technical Specifications

Model Number	SMTIR500
Machine Size	Approx 2250(L)x1300(W)x1750(H)mm
Machine Weight	Approx 800kgs
Max PCB Size	300x450mm (customized), Dual tables
PCB Thickness	0.4-6mm
Cutting Spindle	100000rpm/min
Cutting Accuracy	±0.05mm
Repeat Accuracy	±0.01mm
Power Supply	AC 380V, 50/60Hz, 3KW

Operational Advantages

Increased Throughput: Dual spindle and table design enables continuous high-speed operation
Improved Accuracy: Vision system and precision spindle ensure high-cut quality
Traceability & Quality Control: MES and barcode integration provide full production traceability
Reduced Downtime: Alternate table operation and optional tool auto-change minimize interruptions
Operator-Friendly: Simple HMI and offline programming reduce training time
Dust-Free Operation: Integrated vacuum system extends equipment life

Typical Applications

Consumer electronics assembly
Automotive electronics
Industrial control boards
LED lighting modules
Communication devices

Why Choose Our Solution

Stable: Imported main components with equipment weight over 700kg

Professional: Multiple patented technologies in automation

Innovative: Committed to developing labor-saving, highly automated equipment

Responsive: Solution provided within 2 hours of inquiry
