High Precision PCB Punching Machine with Servo Motor Push Pull and Large 400x400mm Working Area for PCB Depaneling

Merknaam:	Winsamrt
Modelnummer:	SMTP300
Moq:	1 set
Prijs:	USD1-10000/set
Verpakkingsgegevens:	multiplex kast
Betalingsvoorwaarden:	L/C, T/T, Western Union

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Lawaai:

≤75db

Werkgebied:

400x400 mm

Uitvoer:

Type:

Hydraulisch aangedreven

Nauwkeurigheid:

± 0,05 mm

Naam:

PCB-ponsmachine met een output van 25 ton

Levering vermogen:

100 sets

Markeren:

Servo Motor Push Pull PCB Punching Machine

High Precision PCB Depaneling Machine

Large 400x400mm Working Area PCB Separator Punching Machine

Productbeschrijving

25 Ton Output PCB Punching Machine with Hydraulic Drive and Servo Motor Push Pull

High-precision depaneling system designed for mass production of PCBs up to 400mm x 400mm, featuring hydraulic drive and servo motor positioning for clean, burr-free separation with minimal mechanical stress.

Key Features

25 Ton Punching Force: High-capacity hydraulic system for clean and efficient depaneling
Large Working Area: Supports PCB sizes up to 400mm x 400mm
Precision Servo Positioning: High-accuracy servo drive ensures correct alignment
Interchangeable Die Sets: Quick-change system for different board formats
Heavy-Duty Frame: Rigid structure reduces vibration and enhances accuracy

Technical Specifications

Parameter	Value
Driven System	Hydraulic station + hydraulic cylinder
Power Supply	Phase 3, 380VAC 50HZ
Output Force	25 Ton
Max PCB Size	400×400mm
Working Mode	Servo motor push-pull for lower mold
Machine Dimensions	1400×985×1750mm
Weight	850kg

Detailed Specifications

Specification	Detail
Working area	400×400mm
Working pressure	0.45-0.7Mpa
Cutting precision	±0.05mm
Cycle time	7-15 seconds
PCB/FPC thickness	0.08-3.5mm
Compatible materials	FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode	Punching

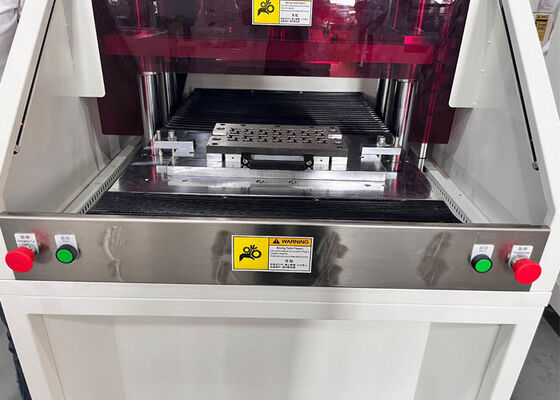

Punch fixture	Die tooling (mold)
Operation features	LCD display, automatic product counting, automatic punching
Power requirements	380/220V

Operational Advantages

High Throughput: One-stroke punching allows simultaneous removal of multiple boards
Minimal PCB Stress: Cleaner cuts without bending or cracking components
Precision Alignment: Servo-driven push-pull ensures accurate positioning every cycle
Large Format Capability: Handles PCBs up to 400×400mm
Durable Construction: Hydraulic system offers long-term stability
Flexible Tooling: Quick-change die system for different PCB designs
Safety Features: Built-in protection for operators and equipment
