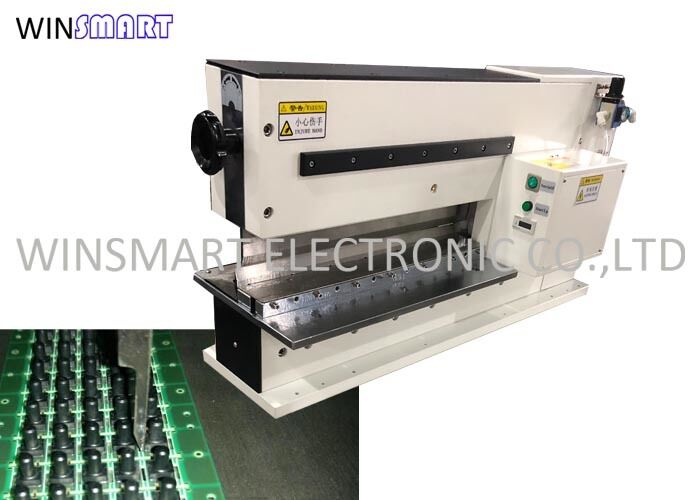

Max 2mm Clearance Metal Core Guillotine PCB Cutter with Adjustable Pressure for V Cut PCB Depaneling

Merknaam:	Winsmart
Modelnummer:	SMTPD2
Moq:	1 eenheid
Prijs:	USD2000-5000/unit
Verpakkingsgegevens:	Multiplex kast
Betalingsvoorwaarden:	T/T

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Apparaatnaam:

Pneumatische pcb-afsplitsingsmachine

Verminder de snelheid:

0-400 mm/sec

Snijcapaciteit:

330 mm

Mestype:

Lineair Blad

PCB-Verbinding:

V-besnoeiing

PCB-dikte:

0,3-5 mm

Voorwaarde:

Nieuw

Naam:

De Snijder van guillotinepcb

Levering vermogen:

500 eenheden/maand

Markeren:

Max 2mm Clearance Guillotine PCB Cutter

Metal Core PCB Depaneling Machine

Adjustable Pressure V Cut PCB Depanelizer

Productbeschrijving

Max 2mm Clearance Metal Core Guillotine PCB Cutter PCB Cutting Machine

The Max 2mm Clearance Metal Core Guillotine PCB Cutter is a specialized depaneling machine designed for precise cutting and separation of printed circuit boards (PCBs). Using a guillotine-style cutting mechanism, it ensures clean, accurate cuts with minimal waste and damage to the PCB. Ideal for PCB manufacturing, prototyping, and repair environments where precision is essential.

Key Features

Max 2mm Clearance: Cuts PCBs with thickness up to 2mm for wide compatibility
High Precision Cutting: Low cutting stress provides smooth, precise cuts with minimal burrs
Ergonomic Design: Comfortable handle and cutting mechanism reduces operator fatigue
Adjustable Pressure: Customizable force settings for different material thicknesses
Heavy Duty Construction: Built for long-term use in demanding environments
Safety Mechanism: Locking system prevents accidental operation

Technical Specifications

Model	SMTPD2
Max cutting length	400mm
CE approval	Yes
PCB connection	V-cut
PCB material	FR4, MCPCB, CEM
PCB thickness	0.3-5mm
Blade type	Linear blade
Cutting speed	Adjustable
Cutting type	Shear
Operation	Foot pedal, manual

Primary Functions

PCB Panel Separation: Cuts V-grooved or pre-scored aluminum PCBs into individual units
Manual or Semi-Automatic Feeding: Operator places board; machine performs precise cut
Stress-Free Cutting: Applies even pressure to avoid component or board damage
Adjustable Blade Gap: Fine-tuning for different board thicknesses and scoring depths
Anti-Bending Support: Prevents board warping during cutting, especially for long LED strips

Key Advantages

Precise Cuts: High-accuracy cutting with minimal risk of PCB or component damage
Increased Efficiency: Guillotine mechanism reduces cuts and rework needed
Reduced Material Waste: Clean separation minimizes scrap and waste
Long-lasting Durability: Metal core construction enhances lifespan and reduces maintenance
Versatile Use: Suitable for wide range of PCB thicknesses and designs
Improved Safety: Protective features ensure safer working conditions
Ergonomics: Reduces operator strain during extended use

Customized Blade Available
